Operating A "Facade Industry"

Fellow blogger and modeler Ralph V recently put up a post on some of the "facade industries" he uses with his layout. In his case, these are separate dioramas that aren't connected to his layout's baseboard or trackwork that he uses to create a photographic extension of his model railroad. It occurred to me that some modelers have explored this idea in the past, and some have even gone a little farther to add them to operations.

In Ralph's case, he manually carries some cars that he wants to photograph as virtually interchanging with his or other layouts, puts them in the diorama, and photographs them to publish on his blog. Other modelers have taken this a little farther and had a mini or micro layout that, while not connected to the main layout, operates as a "branch". Cars are manually carried as needed between the main layout and the subsidiary micro.

About 10 years ago I was inspired by a micro layout plan at the late Carl Arendt's site, Box Street, designed by the prolific Jack Trollope:

I realized I had enough scrap items laying around from my main layout construction that I could build exactly that plan. The was the preliminary result:

At first I had fun taking it outside and photographing it in natural light, but it was still a hassle to carry it in and out with rolling stock, set it up. plug it in with an extension cord, run it, take it down, etc.

But after a while, I decided to mount it on shelf brackets in a storage room next to my layout room:

Eventually I set it up as a two-station "branch" of my main layoyut on JMRI. The interchange from my main layout is at West Egg. A "route" in JMRI called Hand Carry hosts a "train" called Manual Carry that instructs the 0-5-0 transfer run which cars to move from the Box Street layout to West Egg and vice versa:

A separate JMRI job creates a switchlist for the industries on the Box Street layout (called Paper Box on the LF&NW -- the main industry is a paper mill). One advantage is that it gives me extra spots for car types like wood chip and pulpwood cars that I don't have enough spots for on the main layout.

This is still on DC, not DCC, so I can use locos that I haven't yet converted. However, I've made enough progress on conversions that I'm now thinking about running the DCC bus through the wall to this layout and making it convertible from DC to DCC via a DPDT switch. You can see the Bachmann train-set DC controller that it now uses. A DCC controller will be better for regular operation, but I can still switch to DC for testing new locos or occasionally running unconverted ones.

Then, maybe extending it along the wall. . . I need more spots!

Speed Matching

One of the good reasons for any modeler to go into DCC, even if they don't run with multiple operators, is the ability to speed match locomotives. In the old DC days, it really wasn't a good idea to run Athearn and Atlas locos together in MU. More recent higher-quality Bachmann and Walthers locos provide the same sort of problems. However, speed matching with DCC is fairly easy.

A lot of guys on YouTube, and MRVP as well, tend to make things harder than they need to be. Some say you need a scale speedometer to match speeds, and others say you need to fiddle with BEMF CVs. This may be necessary in some cases, but I've found that 90% of diesels can be speed matched simply with 3-point speed curves and adjustment of CV2, the starting voltage. The rules of thumb I've found:

• Use CV2 to be sure both locos start at the same speed step. You set up a DCC consist with your control station and put both locos on the track, but don't couple them. Start the consist and see if both locos start running at the same time. If one doesn't and the other does, increase CV2 by small increments in the one that doesn't until it starts at the same time as the other loco.
• Using the same technique of putting both locos in a consist but not coupling them, try running the consist at a faster speed and see if the locos match speeds. You don't need to be exact, just be sure one doesn't catch up to the other right away. If one is faster, adjust CV6, the mid-range voltage, down by increments of 10 or so until the two locos run at visually a close speed.
• Then try running them coupled, maybe doing some switching work or running a freight with them around the layout. Check especially to see if one isn't pushing the other hard or holding the other back. If this happens, keep adjusting CV6 on either loco until the problem is fixed.
• Listen for scraping or groaning sounds that might indicate a loco is being dragged or pushed. Adjust CV6 on the faster loco (generally) until this goes away.
• If one loco has a lot more flywheel dwell time than the other, you can adjust acceleration and deceleration momentum with CV3 and CV4. This keeps one loco from shoving the other just because its flywheel runs longer. Very small changes in the value will work wonders.
• No two locos are exactly alike. Two locos can run at the same speed at a mid-range speed step, but their acceleration and deceleration can vary from 0 to the middle speed step. If you have the big issues solved, this won't be a big problem.
• Make notes of what values you put in the CVs!

Here are some examples of multiple-maker locos that I've speed matched.

The first, below, is a new Walthers SD70ACe that I speed matched with a Bachmann SD40-2. The Bachmann SD40-2 is a special case, because it doesn't have flywheels. But when I set CV3 and CV4 to 1 on any non-flywheel Bachmann loco (like older GP40s), it runs just like a flywheel loco. These two locos match speeds very well.

A Bachmann GP40, an Atlas Classic silver GP7, and an Atlas U23B:

A yellowbox Atlas C425 and a Walthers Proto GP30:

A Bachmann GP7 with an Atlas Classic silver GP7. Note that Bachmann DCC on board locos with factory decoders must have their factory decoders replaced (NCE BACH-DSL decoders are specifically meant to do this on many types) to enable speed matching, but when this is done, these locos operate and speed match very well.

An Atlas U23B and an Athearn GP38-2:

New Walthers Mainline SD60 Review

As I mentioned in a previous post, I decided to order one of the new Walthers Mainline SD60s. Walthers says these have new gearing and truck sideframes from the Life Like/Proto SD60s they're based on. I ordered the DC, DCC-ready version. I like sound, but too much of it, from my point of view anyhow, can drive you up the wall.

I was flying blind on my order from several points of view. Walthers really isn't consistent from marque (i.e., Proto, Mainline, Trainline, etc) to marque, and even from run to run within the marque (e.g., GP60) on DCC adapter socket and lighting features. I had sort of anticipated that these units would have ditch lights equivalent to the new Mainline SD70ACes, but they don't -- they just have a high headlight. Also, unlike some Proto units, although the number boards light, they aren't separately controllable. Here's the chassis showing the light arrangements, just a single LED:

The DCC interface is a 9-pin. Since the headlights are controlled by single LEDs front and rear, a Digitrax DH126 is a good choice. It fits very nicely on the chassis.

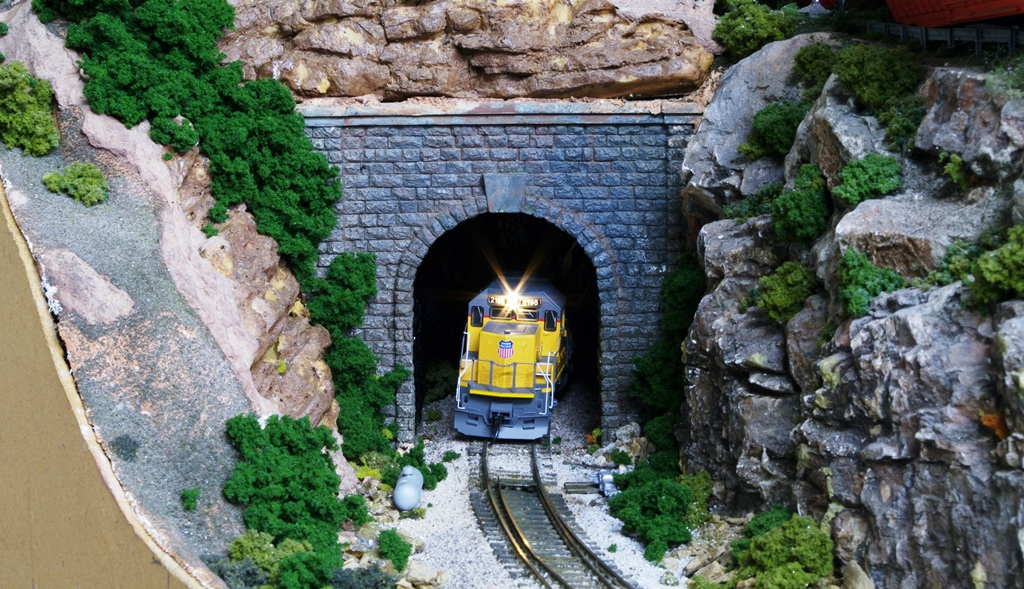

Here's the effect with the headlight lit:

Here's a better view of the loco:

With the 2000 series number and yellow frame stripe, these are best used for post-2005 and in local service. From that standpoint, it's a little unfortunate that they don't have ditch lights, although in local service these aren't always used. On my roster, this will run best with Kato SD9043MACs and Atlas Trainman gensets. Both of these have ditch lights, so I can use their ditch lights if the SD60 is trailing. I made a test run in a consist with a genset:

The genset runs a little faster than the SD60, but with speed matching in DCC, this should be easy to adjust. I'm going to put up another post soon on speed matching.

These locos are robust, smooth runners, with very good weight.

Empire Belt Hopper

Fellow blogger and modeler John R and I have exchanged custom decals for our respective model railroads. After considering possible cars to letter and running some ideas by John, I decided on doing a Mehano-IHC quad hopper, upgraded and with paint stripped. John gave me the number series for ribbed cars, and here's the result:

Partly because the car has missing steps, and partly because it's fun, I added a HOME FOR REPAIRS DO NOT LOAD stencil from a Microscale set:

This won't affect how I operate the car, it's just a feature I add to cars now and then.

Once I finished the car, it began to remind me of the various miscellaneous old quad hoppers that turn up frequently on the UP, lettered for CNW, MP, CTRN, and other owners. I'm realizing this would mix in pretty well with other quads on my layout.

New Walthers Mainline SD60s And SD60Ms

I see that the new Walthers SD60s and SD60Ms have arrived. I'm especially interested in the UP versions and will probably get at least one. These were common in California throughout their lives, and after the SP merger, they were even more so.

Both of the UP versions have yellow sill stripes that replaced the red ones starting about 2005. The standard-cab SD60s didn't last all that long ith yellow sill stripes. Here's a red sill stripe one from 2004:

Here's one with a yellow sill stripe in 2015, about the end of its career:

Oddly, the Walthers SD60 model has the lightning stripe scheme, but none of my standard-cab SD60 photos shows this.

The Walthgers SD60M has the late two-window cab. Here are some photos I've taken:

By this time, these locos were pretty much in local service in the Los Angeles area. A lot more of these had the lightning-stripe scheme, but oddly, Walthers has brought these in with the older straight gray band.

Here's a 2012 shot with a loco still mixed in with newer road power:

But here's one of the last I saw, on a Chicago-area mainfest:

This was in late 2015.
